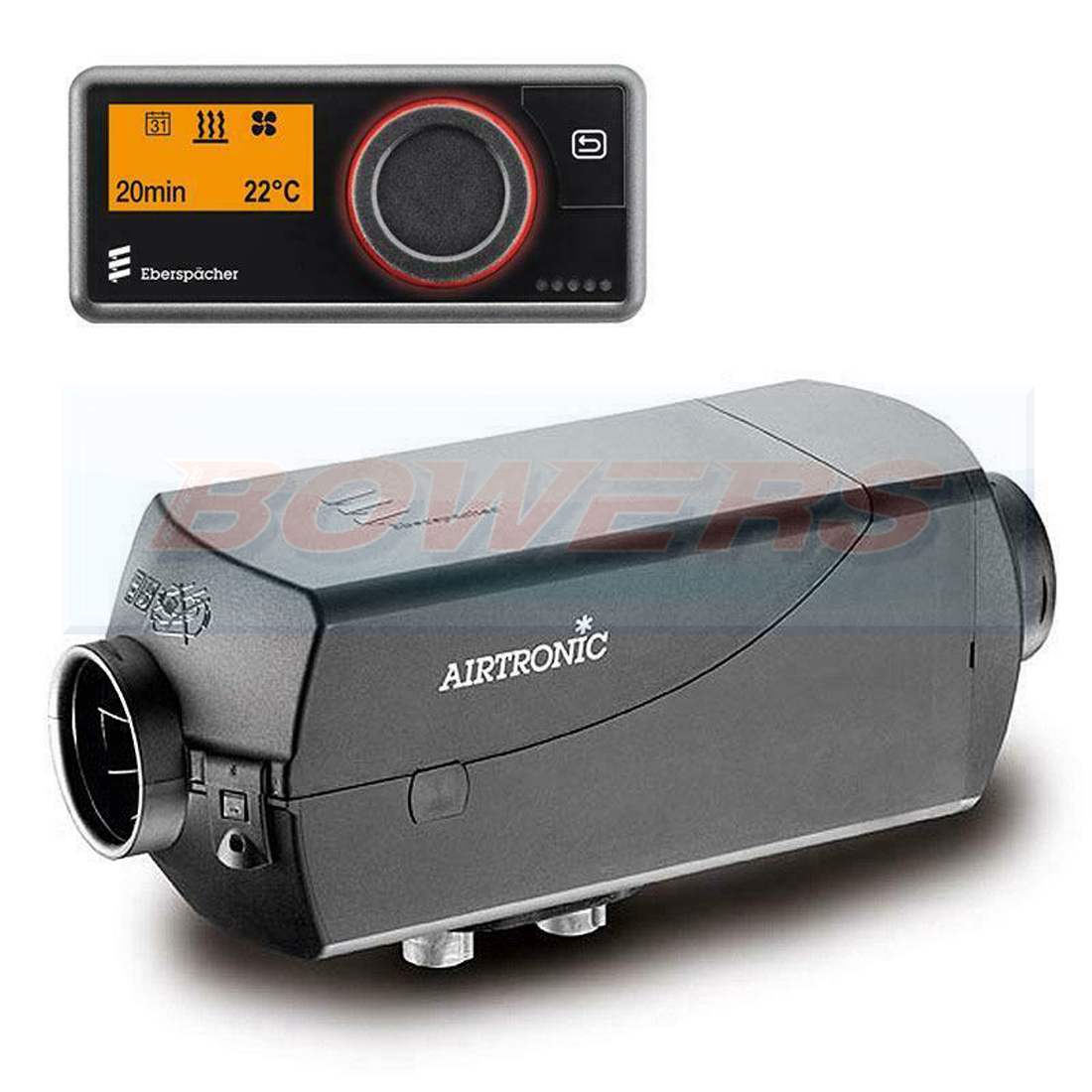

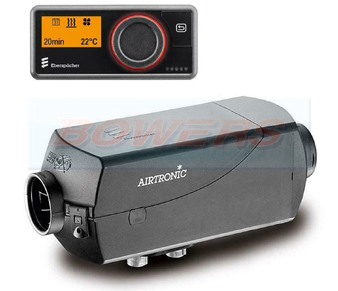

Eberspacher Airtronic S3 D2L 24v Heater Kit With EasyStart Pro 7 Day Timer

Features

The new Airtronic is the logical further development of the successful Eberspacher air heater with its robust components and the latest control system. The Airtronic now features both functional expansions and a longer service life.

The new Airtronic is equipped with automatic altitude adjustment as standard. A new brushless motor has extended the service life of the heater to 5000 hours. This new motor, a modern control system and the use of the latest metering pump technology also improve the acoustics making this the quietest Airtronic heater ever. Furthermore the new Airtronic uses the pioneering Eberspacher CAN bus technology

Features

Stepless heating performance control: This allows for a more dynamic heat output that modulates to maintain the required temperature. The stepless output control has also reduced the operating sound of the heater

Quieter fuel pump: The new Airtronic kit includes a new almost silent digital fuel dosing pump with mechanical damping ring and intelligent current control removing the annoying ticking sound of previous models

Low maintenance: The new Airtronic has a potential service life of 5000 hours. This depends on installation and how the unit is used. It's advised you have your Eberspacher serviced annually to ensure your heater is working as efficiently as possible

Auto altitude adjustment: Altitude adjustment is automatically handled by the new Airtronic up to 3000m above sea level with an integrated altitude sensor, no additional altitude kit is required

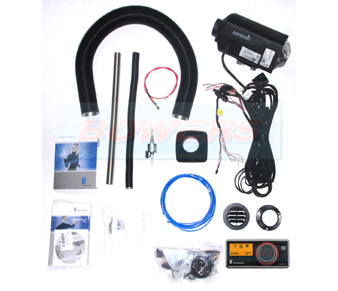

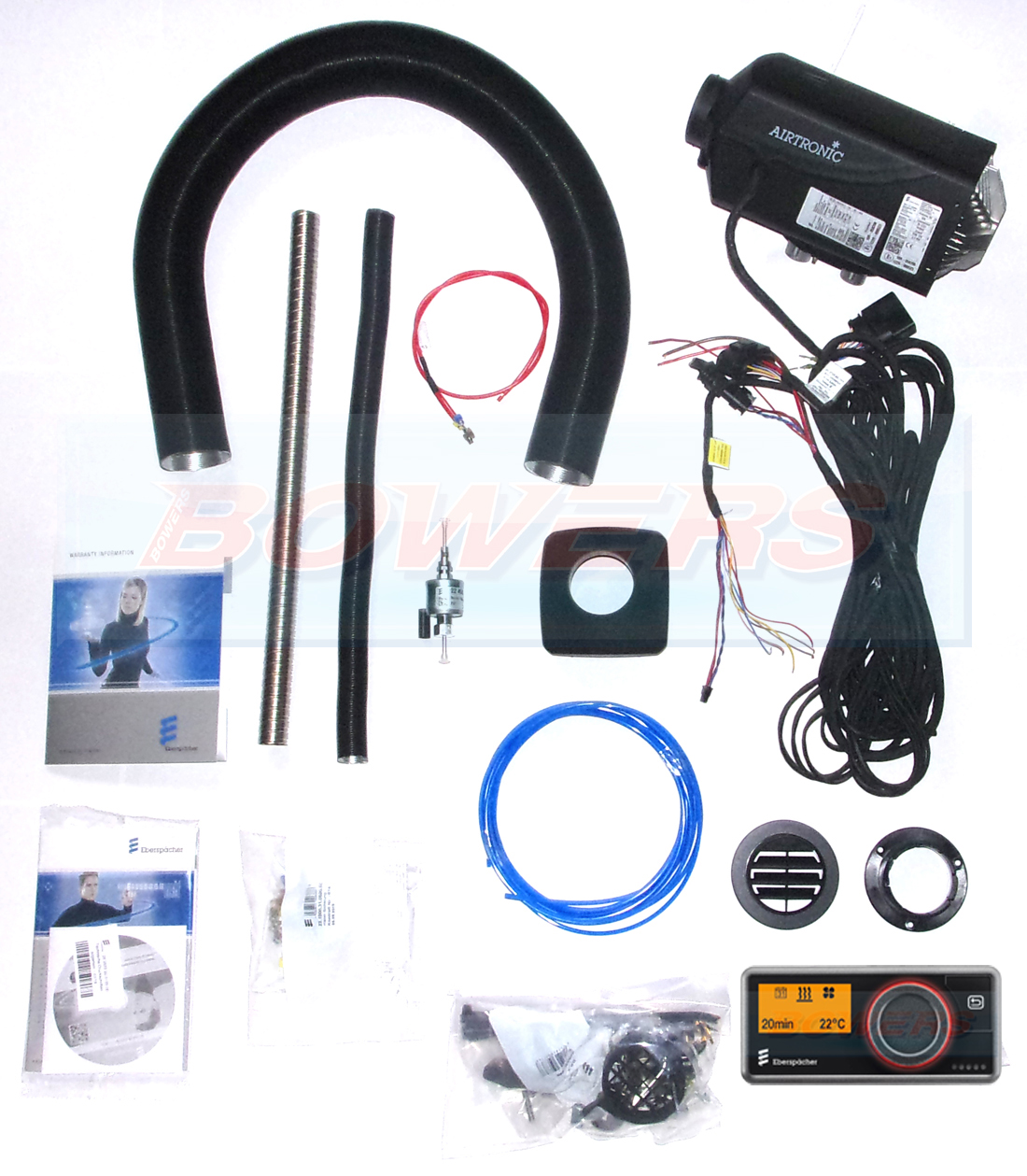

Kit Contents

• Main Heater Unit
• Complete wiring harness (This cannot be modified in anyway)
• Fuse holder kit with fuses
• Fuel pump with bracket
• Fuel lines
• Easystart Pro 7 day timer control, Diagnostic readout with text based fault descriptions
• 24mm ID S/S Exhaust pipe with end cap and clamp/P clips
• Complete heater wiring loom & Connectors
• Combustion air intake pipe with end cap
• 1m of 60mm Warm air APK ducting with clips
• 60mm Direction warm air outlet with bracket
• 60mm Outlet hood
• 60mm Outlet grille
• Fixing bolts, screw clips etc
• Instruction Manual

Up to 3 years Eberspacher Uk warranty. Heater comes with 1 year warranty as standard. For an additional 2 years the heater must either be installed by an official Eberspacher UK approved installer or checked over by one. Information must then be provided to Eberspacher UK by the approved installer. Please contact us if you require more information on this.

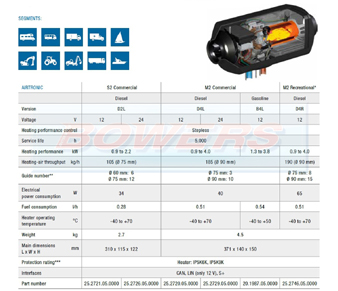

Technical Information

• On board diagnostics with EasyStart Pro controller
• 2.2Kw Heater
• 28W Power consumption
• 0.27 L/H Fuel consumption
• 2.5kg Weight
• Heater operating temperature of -40°C to +70°C

Downloads

See product catalogue (in the 'Download' section) for the latest product details
