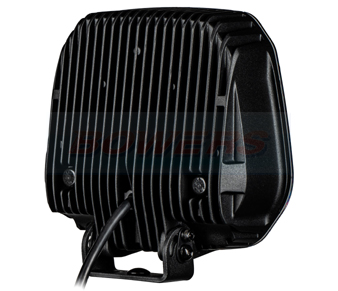

Ledson Epix9+ Strobe 9" LED Dynamic Start Up Driving Spot Light + Powerboost

Features

Ledson developed Swedish design

Epix9+ Strobe from Ledson is an innovative series of auxiliary lights that elevate your vehicle to the next level. It is also equipped with five different strobe patterns, including one R65-approved. With a Swedish design (developed in-house by Ledson) and outstanding performance, these auxiliary lights give your vehicle a truly unique and exclusive look that’s guaranteed to attract attention! Experience exceptional brightness and design in perfect harmony.

Strobe patterns

Single flash (ECE R65 approved), double flash, triple flash, quadruple flash, continuous hyper flash.

Synchronizable and with alternating flash pattern

Epix9+ Strobe can be synchronized with each other, which means that all of the lights use the same flash pattern and strobe synchronized. But you also have the option of an alternating flash pattern, which means that your auxiliary lights can be divided into two different groups so that they strobe opposite of each other (eg right / left or top / bottom). You can synchronize and use alternating flash patterns with an infinite number of lights, i.e. there are no restrictions on the number of lights you use.

Dynamic Position Light

The Epix9+ Strobe activates its position light dynamically, with an impressive sweeping motion that elegantly guides the light from one side of the auxiliary light to the other before fully illuminating. This effect gives you and your vehicle a distinct and unique signature.

Pulse-Controlled Powerboost - It Doesn't Get Smoother Than This

Epix9 Strobe comes equipped with Ledson Powerboost—an extra power mode for those moments when you need (or simply want) maximum brightness. A simple flick of the high beam lever activates this impressive brightness, allowing you to easily adjust the auxiliary light's output according to your needs. With the new generation of Powerboost from Ledson, you can seamlessly switch modes using the high beam flash.

Technical Information

• Selectable position light with dynamic activation (yellow-orange or xenon white, connect the colour of your choice)
• Range in E-approved mode: 359 m (1 lux)
• Range in Powerboost mode: 773 m (1 lux)
• Driving beam pattern with 20° light spread
• E-marked: ECE R112 (Ref. 30), R7 (White position light)
• EMC certified: ECE R10 (does not interfere with radio)
• 15,000 lumens (theoretical), 11,000 lumens (actual)
• Neutral white light: 5000K
• ETM (Electronic Thermal Management): Adjusts diode power based on temperature for optimal lifespan
• Side-reflecting optical system
• Pressure equalization membrane
• Aluminium heat sink
• Adjustable stainless steel mount
• Polycarbonate lens
• 36-month warranty

Features

• Strobe light with five different flash patterns, including one R65-approved.
• Selectable position light with dynamic activation (yellow-orange or xenon white, connect the colour of your choice)
• Range in E-approved mode: 359 m (1 lux)
• Range in Powerboost mode: 773 m (1 lux)
• Driving beam pattern with 20° light spread
• E-marked: ECE R112 (Ref. 30), R7 (White position light) - Read more about UNECE regulations here
• EMC certified: ECE R10 (does not interfere with radio)
• 15,000 lumens (theoretical), 11,000 lumens (actual)
• Neutral white light: 5000K
• ETM (Electronic Thermal Management): Adjusts diode power based on temperature for optimal lifespan
• Side-reflecting optical system
• Pressure equalization membrane
• Aluminium heat sink
• Adjustable stainless steel mount
• Polycarbonate lens
• 36-month warranty

Technical data

• 180W (4 x 20W Cree LED + 4 x 10W Cree LED), strobe lights 12W (4 x 3W LED)
• Nominal Power: 154W (Powerboost)
• IP69K (water and dust proof)
• Cable with 6-pin DT Connector
• Voltage: 9-36 V
• Load in E-Approved Mode: 1,5A @ 12V and 0,7A @ 24V (high beam only, no position light)
• Load in High Beam Powerboost Mode: 12,6A @ 12V and 5,6A @ 24V (high beam only, no position light)
• Weight: 2,23 kg

Included

• One Ledson Epix9+ Strobe LED auxiliary light 9"
• Mounting bracket, bolts, and screws for single or dual mounting points
• DT Connector (6-pin)

Wiring Instructions

• Red: Auxiliary light (+)
• Black: Auxiliary light / Position light (- Ground)
• White: Position light (+) White light
• Yellow: Position light (+) Yellow-orange light
• Green: Strobe light (+)
• Blue: Synchronization & pattern (+)
• Brown: Alternating (+)

Downloads

See product catalogue (in the 'Download' section) for the latest product details
