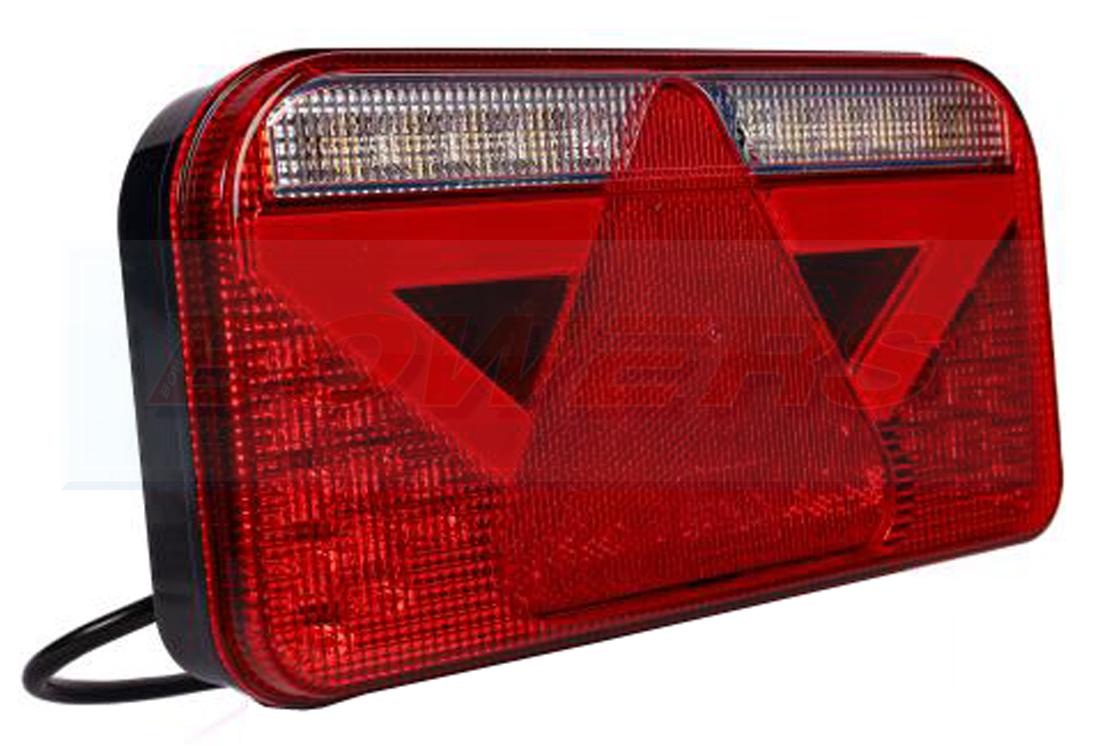

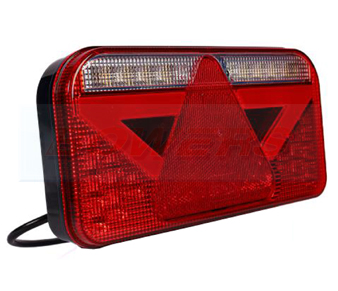

Neon LED Rear L/H Combination Tail Light LG574

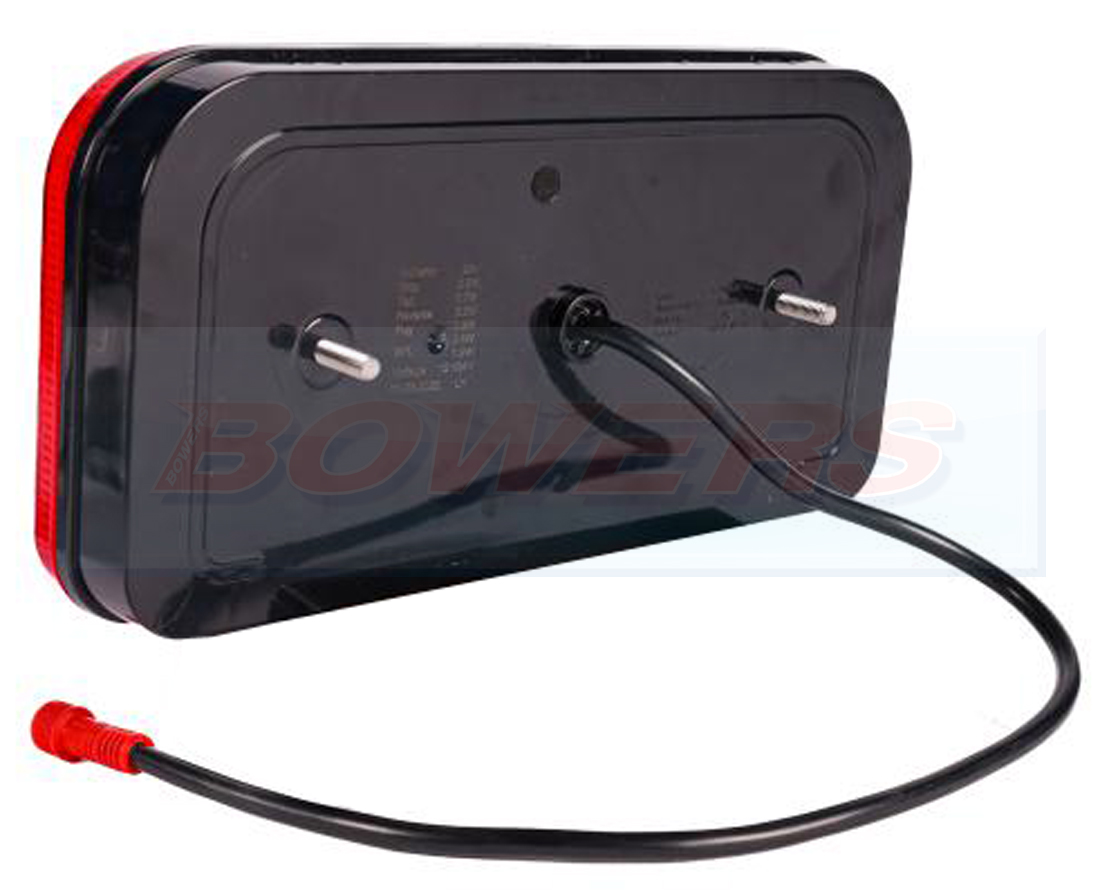

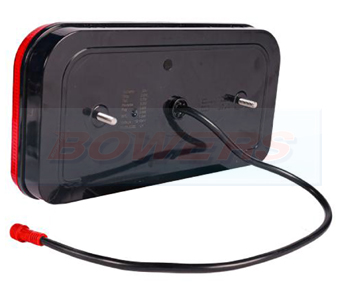

Neon LED Rear L/H Combination Tail Light LG574-LG575 Rear
  • Neon LED Rear L/H Combination Tail Light LG574
  • Neon LED Rear L/H Combination Tail Light LG574-LG575 Rear

L/H Rear Neon LED Combination Trailer Light Lamp

Product Ref: LEGLG574

Brand: LED Global

MPN: LG574

Dimensions: 256mm (Length) x 130mm (Height) x 40mm (Depth)

£45.47 inc VAT£37.89 ex VAT

In Stock

Features

Universal rear neon tail light LED combination light

Technical Information

  • Multi voltage 9-33v
  • 6 Light functions (Stop, Tail, Indicator, Fog, Reverse & Reflector)
  • Polycarbonate Lens
  • Fully Waterproof & Air Tight
  • Neon LED tail light
  • Universal 2x Bolt Mounting (152mm Between bolt centres)
  • Pre-wired with 500mm cable with small 5 pin connector plug (comes supplied with 150mm fly lead with bare wire ends to connect)
  • Smart resistor built in to indicator
  • Minimum Power Consumption
  • E-Marked
  • EMC Approved
  • Reverse polarity protection

Wiring Diagram

  • White = Earth
  • Black = Reverse
  • Green = Tail
  • Yellow = Indicator
  • Blue = Stop
  • Red = Fog

Downloads

See product catalogue (in the 'Download' section) for the latest product details
