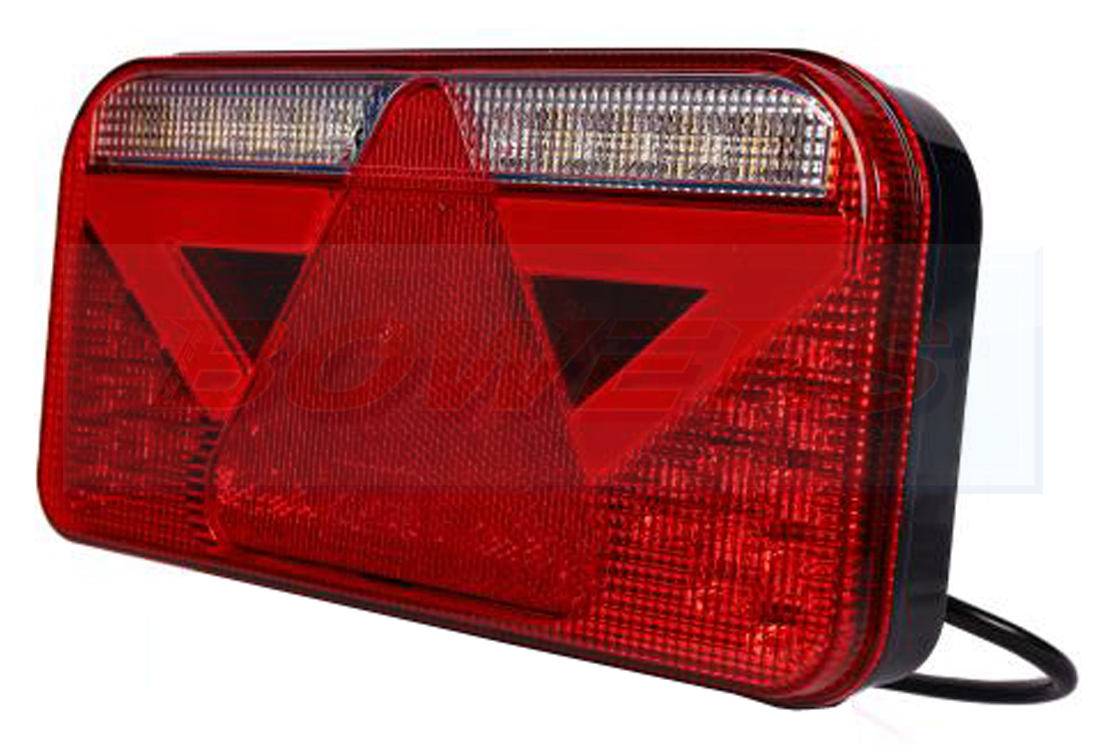

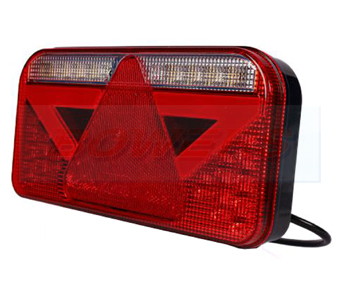

R/H Rear Neon LED Combination Trailer Light Lamp

Features

Universal rear neon tail light LED combination light

Technical Information

• Multi voltage 9-33v
• 6 Light functions (Stop, Tail, Indicator, Fog, Reverse & Reflector)
• Polycarbonate Lens
• Fully Waterproof & Air Tight
• Neon LED tail light
• Universal 2x Bolt Mounting (152mm Between bolt centres)
• Pre-wired with 500mm cable with small 5 pin connector plug (comes supplied with 150mm fly lead with bare wire ends to connect)
• Smart resistor built in to indicator
• Minimum Power Consumption
• E-Marked
• EMC Approved
• Reverse polarity protection

Wiring Diagram

• White = Earth
• Black = Reverse
• Green = Tail
• Yellow = Indicator
• Blue = Stop
• Red = Fog

Downloads

See product catalogue (in the 'Download' section) for the latest product details
